SRS crates

SRS reusable crates

Svenska Retursystem’s reusable crates are developed in order to meet the grocery industry’s strict requirements for quality, durability and care for the environment.

All of our crates are manufactured out of durable, recyclable plastic (polypropylene) and the handgrips of polyamide. They are constructed for use over and over again without affecting the quality.

Sötpotatis i hellåda svart. Bild från Everfresh

Full-size crates

Bild på Hellåda svart

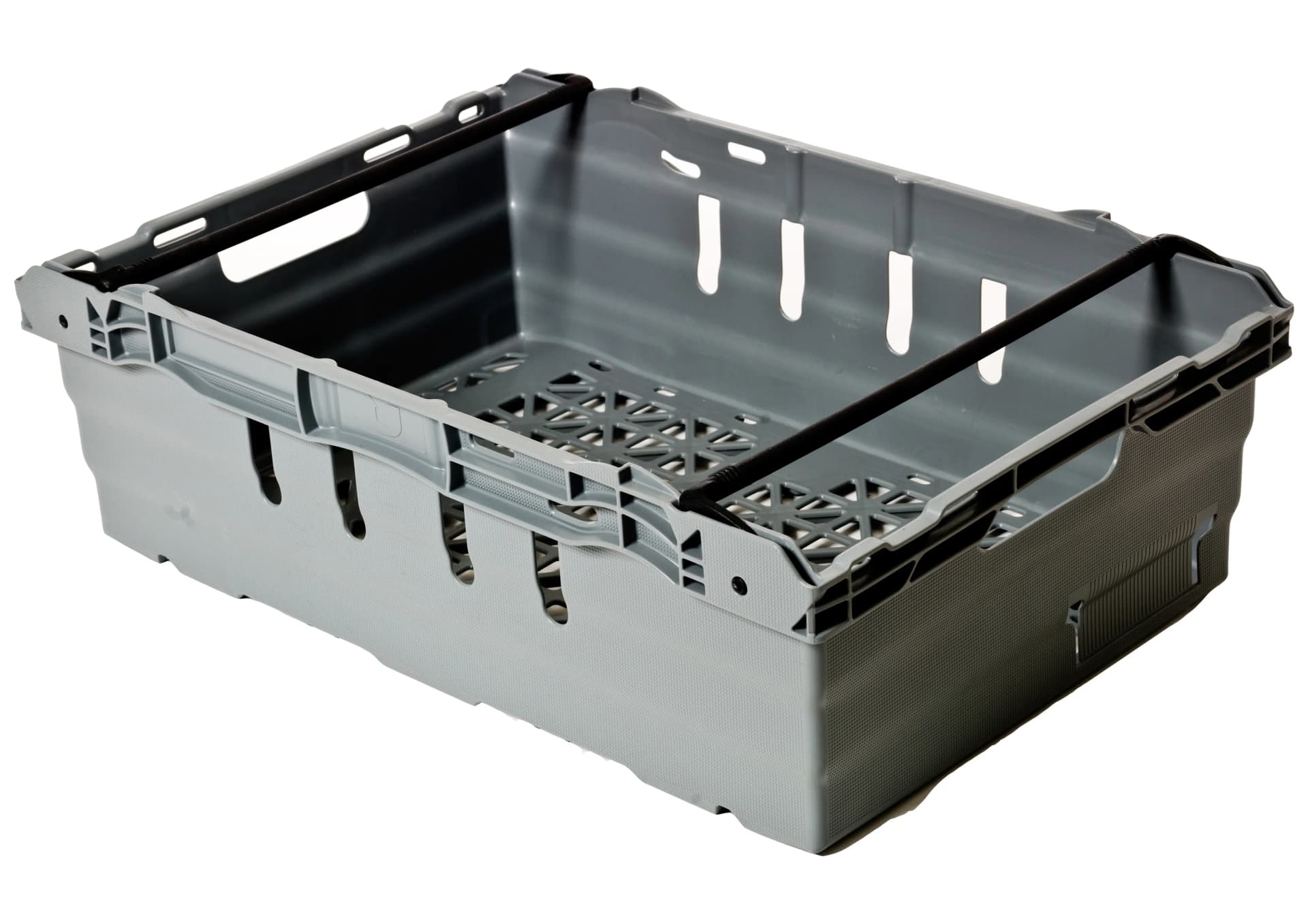

Full-size 167 black

Working Height:
167 mm under bale arm
Loading capacity:
20 kg
Stacking capacity:
375 kg
Weight:
1.630 kg (+/- 2 %)
Minimum inner bottom size:
546,5 × 349,5 mm
Pile of filled crates:
Number of empty crates per module: 84 pcs.
First crate builds 194 mm, following crates 181,2 mm.
Piles 6 crates high within total height off 125 cm including EUR/Full-size grey pallet

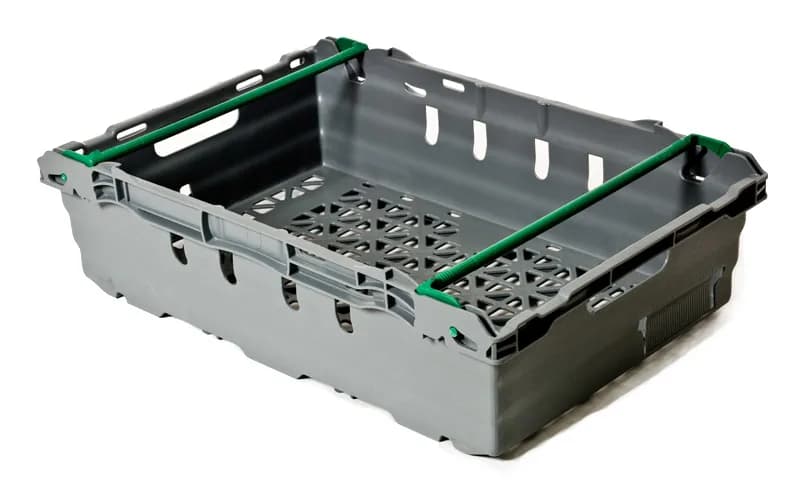

Full-size 110/140 green

Working Height:
110/140 mm under bale arms
Loading capacity:
Higher position 12 kg, lower position 9 kg
Stacking capacity:
181 kg
Weight:
1,530 kg (+/- 2 %)
Minimum inner bottom size:
545,1 x 348,6 mm
Pile of filled crates:
Number of empty crates per module: 96 pcs.
First crate builds 167 mm, following crates 154 mm with the higher position of bale arm. 124 mm with the lower position of bale arm.
Piles 7 crates high with the higher position within total height off 125 mm including EUR/Full-size grey pallet.
8 crates high with the power position of bale arm.

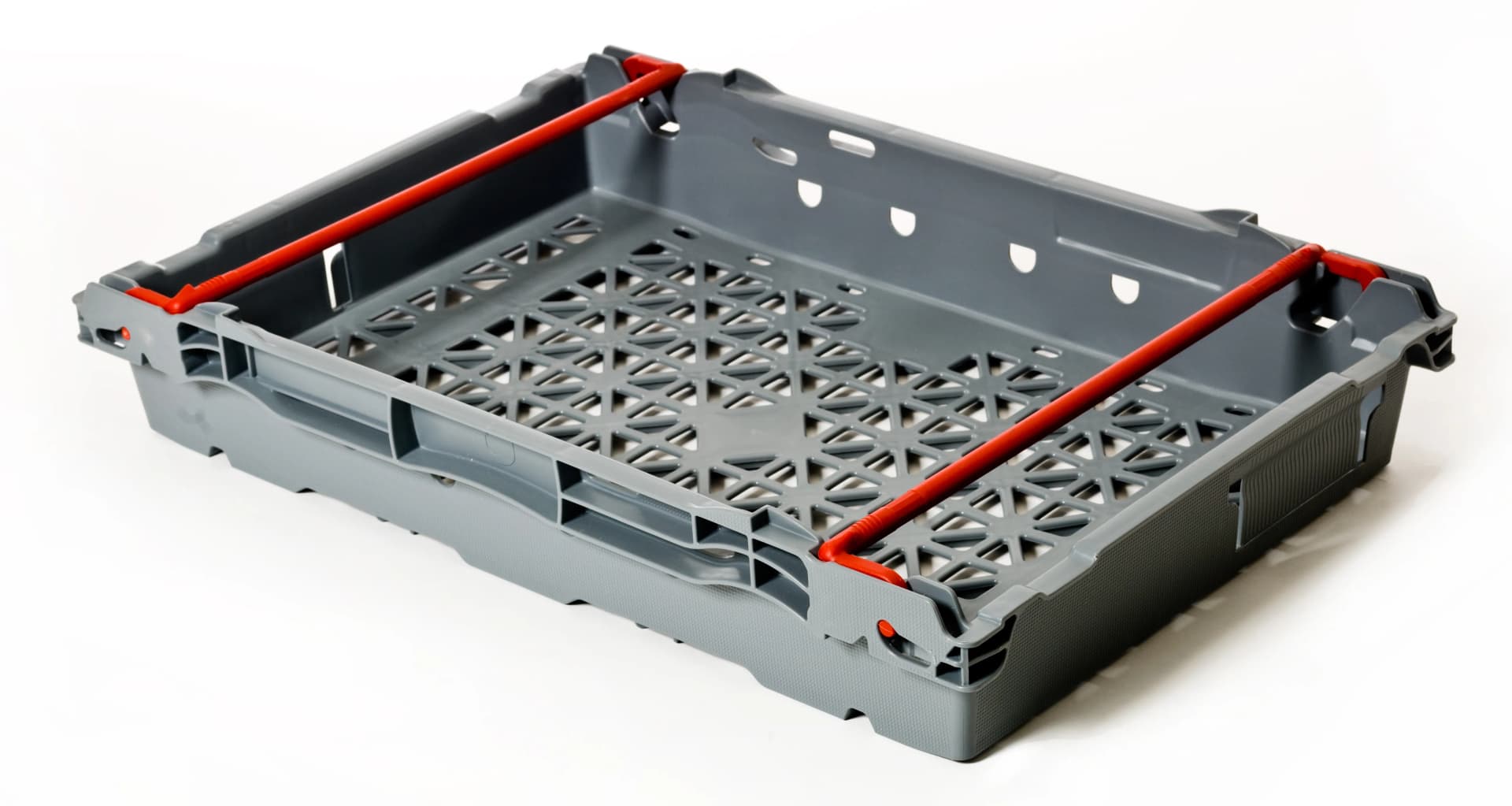

Full-size 50/80 red

Hight:
50/80 mm under bale arms
Loading capacity:
Higher position 7 kg, lower position 5 kg
Stacking capacity:
177 kg
Weight:
1,208 kg (+/- 2 %)
Minimum inner bottom size:
552 x 352 mm
Pile of filled crates:
Number of empty crates per module: 104 pcs.
First crate builds 106 mm, following crates 93 mm with the higher position of bale arm. 63 mm with the lower position of bale arm.
Piles 11 crates high with the higher position within total height off 125 cm including EUR/Full-size pallet Grey.
16 crates high with the lower position of bale arm.

Half-size crates

Half-size black

Working height:
165 mm
Loading capacity
11 kg
Stacking capacity:
200 kg
Weight:
0,860 kg (+/-3 %)
Minimum inner bottom size:
362 x 259 mm
Pile of filled crates:
Number of empty crates per module: 168 pcs.
First crate builds 193 mm, following crates 181 mm.
Piles 6 crates high within total height off 125 cm including EUR/Full-size grey pallet.

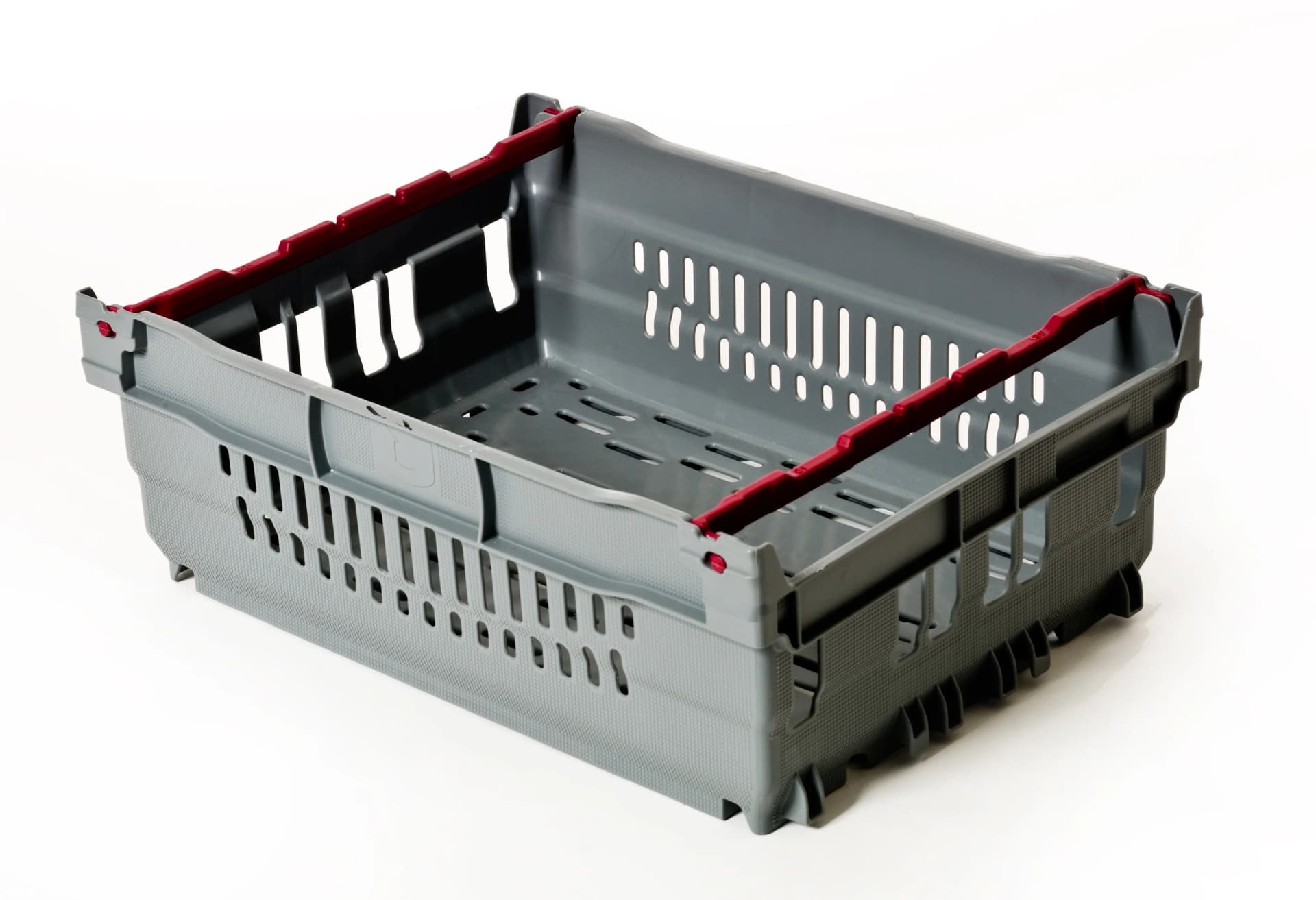

Half-size 120 red

Working height:
120 mm under bale arms
Loading capcity:
8 kg
Stacking capacity:
200 kg
Weight:
0,764 kg (+/-3 %)
Minimum inner bottom size:
362 x 257,5 mm
Pile of filled crates:
Number of empty crates per module 176 pcs.
First crate builds 148 m, following crates 136 mm.
Pile 8 crates high within total height of f 125 cm including EUR/SRS Full-size Grey pallet.

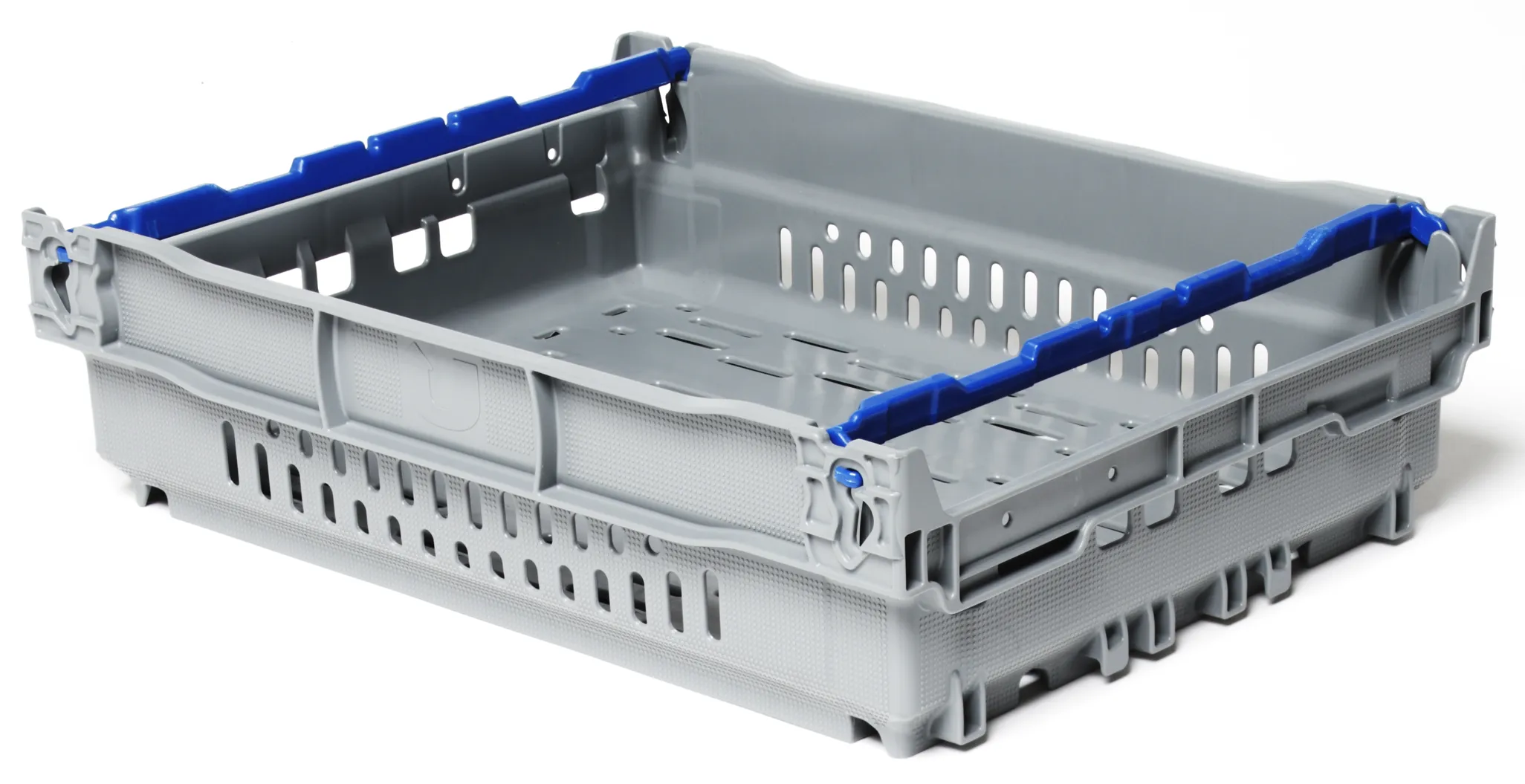

Half-size 50/80 blue

Working height:
50/80 mm under bale arms
Loading capacity:
Higher bale position 5,5 kg, lower position 2,5 kg
Stacking capacity:
200 kg
Weight:
0,710 kg (+/-3 %)
Minimum inner bottom size:
357,8 x 253 mm
Pile of filled crates:
Number of empty crates per module 184 pcs.
First crate builds 108 mm, following crates 96 mm with the higher position of bale arm, 66 mm with the lower position of bale arm.
Piles 11 crates high with the higher position within total height off 125 cm including EUR/SRS Full-size grey pallet. 16 crates high with the lower position of bale arm.

A system based on deposit

When you sell products to your customers in Sweden you also include the individual deposit costs in the invoice. Deposit rates are reviewed January 1st and July 1st each year. The deposit follows the crates. When you receive crates you will pay the user fee and deposit.

Please contact customer service for price information.
